SX45000

MC-45 | Concrete Milling Machine

$2,359.00

Part Number: SX45000

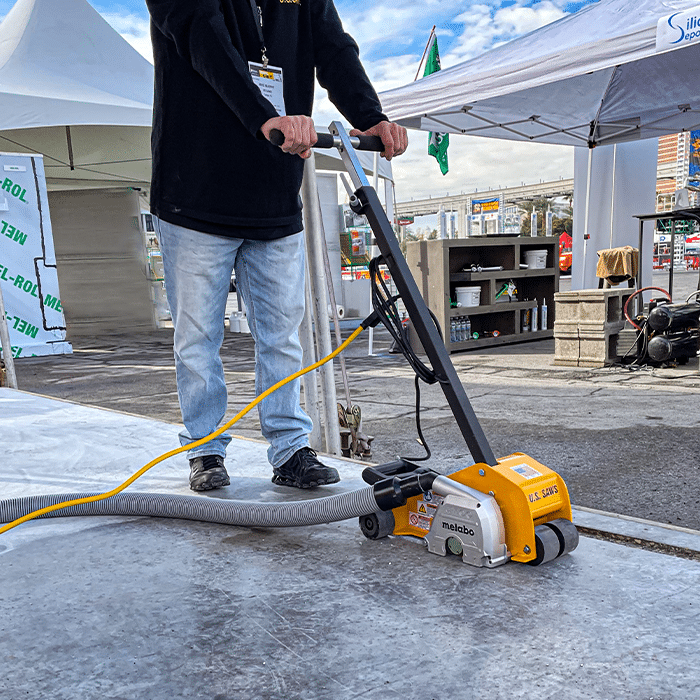

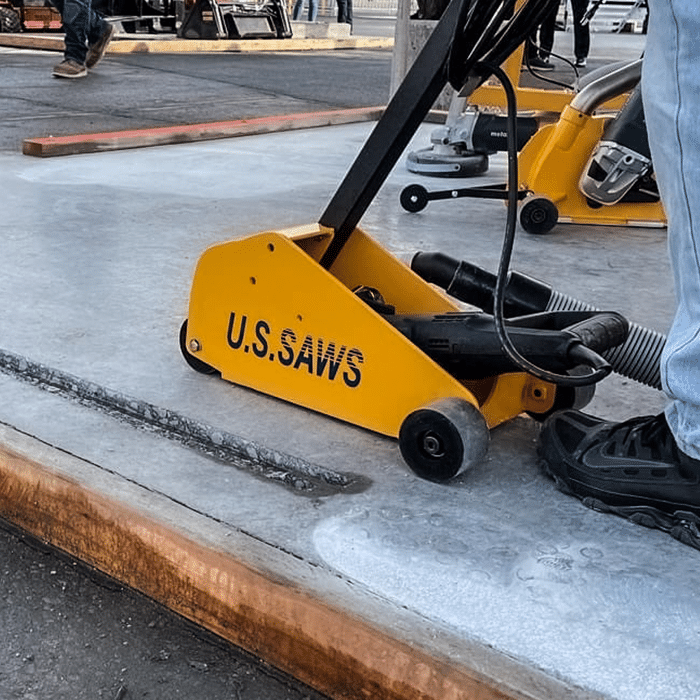

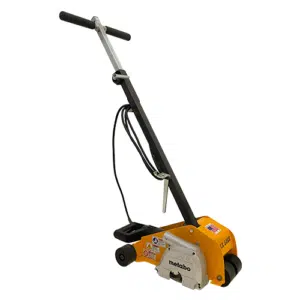

The MC-45 is a concrete milling machine used for cutting out spalled joints and other applications where concrete needs to be removed. The MC-45 will cut up to 1-1/2 inches deep and 1-1/2 inches in width in one pass and can utilize a variety of blade and spacer combinations to vary the width of the cut. The MC-45 is powered by a 120V 15 amp Metabo gear reduction grinder. Production speed is 2 feet per minute at  1” wide by 1/2” deep. This machine is designed with a heavy duty steel frame and a unique wheel configuration to roll over existing cuts and joints. The MC-45 comes equipped with (5) blades which will achieve a cut width of approximately 1".

In stock (can be backordered)

Qty
Add to Favorite
Add to Favorite
Stone Fire Blade
4.5" x .100" x 7/8-5/8" Stone Fire Blade
$60.30
Dust Collection System
Ultra Vac 1250 | Dust Collector
$3178.00

Description

MC-45 Concrete Milling Machine

Part Number: SX45000

The MC-45 is a concrete milling machine used for cutting out spalled joints and other applications where concrete needs to be removed. The MC-45 will cut up to 1-1/2 inches deep and 1-1/2 inches in width in one pass and can utilize a variety of blade and spacer combinations to vary the width of the cut. The MC-45 is powered by a 120V 15 amp Metabo gear reduction grinder. Production speed is 2 feet per minute at  1” wide by 1/2” deep. This machine is designed with a heavy duty steel frame and a unique wheel configuration to roll over existing cuts and joints.

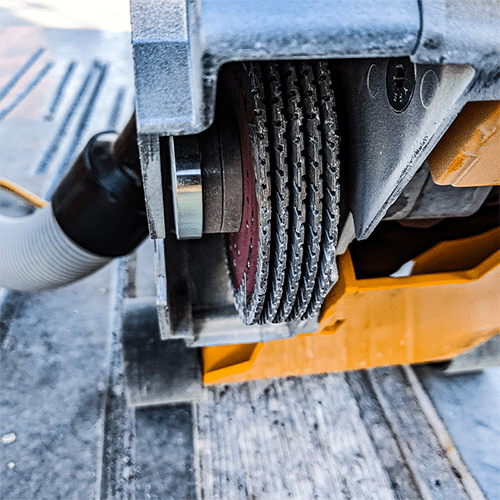

The MC-45 comes equipped with (5) blades which will achieve a cut width of approximately 1″.



  • Cuts out existing damaged joints up to 1.5” wide and 1.5” deep in a standing position
  • Excellent dust collection capabilities when used with a proper dust collection system (200 CFM minimum is recommended)
  • Forward mounted handle to keep forward pressure on the blades

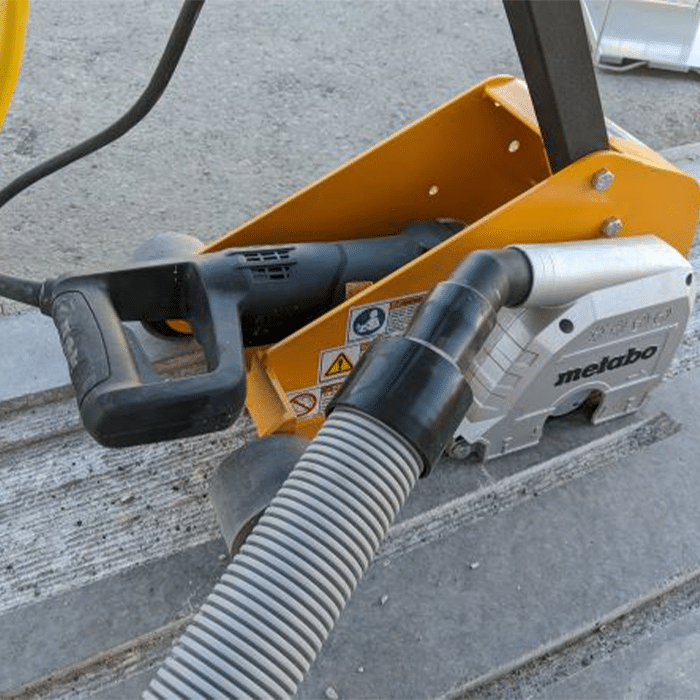

  • Powered by 15 AMP Metabo
  • Can run 2 feet per minute at 1” wide and 1/2” deep
  • The unique design gives the user up to 8” of milling width (multiple passes) without destabilizing the machine
  • Made in the U.S.A.

MC-45 Milling Machine Spec Sheet

MC-45 Owners Manual

1. What is this machine used for?

The MC-45 is used to cut out and square up damaged floor joints prior to repairing them.

2. What size blades does it use?

You can use a 4″, 4.5″ or a 5″ blade.

3. Does it use special blades?

No, any correctly sized diamond blade with a 7/8 arbor will work.

4. How wide will it cut?

It will cut 1-1/2″ wide with 8 blades on the machine. You can use less blades if you want a narrower cut.

5. How Deep will it cut?

4″ Blades = 1″ Max depth.     4.5″ Blades = 1-1/4″ Max depth.   5″ Blades = 1-1/2″ Max depth.  (With new blades. Depth will decrease with blade wear)

6. Can you adjust the depth?

Yes, the depth of cut is adjustable.

7. What kind of power do I need?

115V 15Amp (20 Amp breaker is preffered)

8. What size Vac do I need?

200CFM

9. Can it be used Wet?

No

10. Can it cut out old joint fill material?

Yes

11. Does it come with blades?

Yes, it comes with 5 blades.

Additional information

Weight 30 lbs
