Product Description

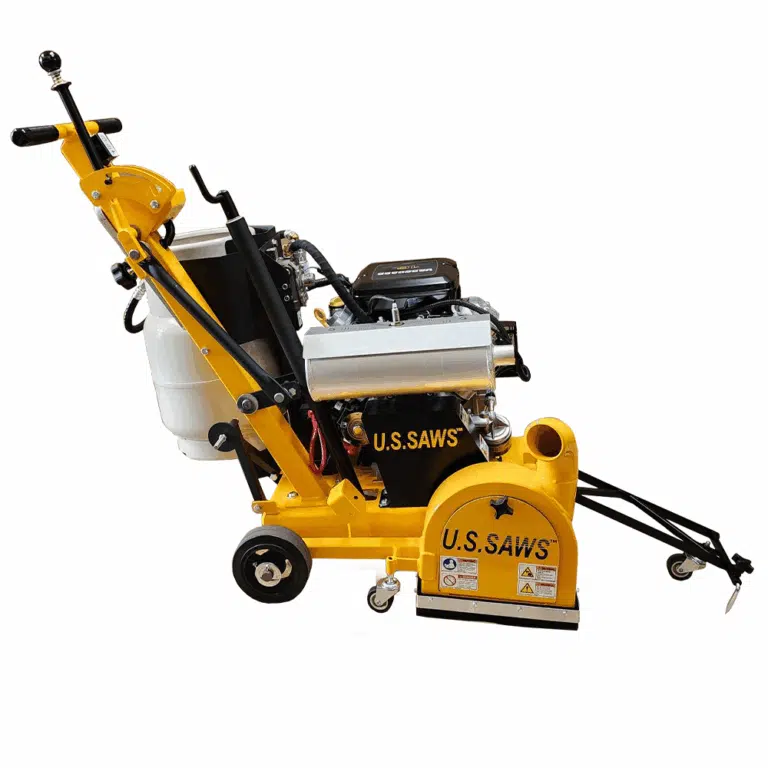

The JS-160P is a Certified Propane Powered Joint Clean-out Saw/Mill designed to clean out existing control joints for new joint fill applications or to remove failing or deteriorated joint fill material. Built for large joint clean-out projects where a certified propane power source is preferred over gas or electric, this machine efficiently removes polyurea, epoxy, and polyurethane materials.
The JS-160P cuts 3″ deep and can be used with a variety of blade thicknesses.
Power comes from a 479cc Briggs & Stratton Vanguard V-Twin certified propane engine with electric start and a twin-cylinder design that reduces vibration for smoother operation.
Technical Data
| Weight | 240 lbs |
|---|---|
| Fuel Capacity | 14 lbs (3-4 hour run time) |
| Power Source | 16 HP Vanguard, V-Twin 479CC |
| Fuel Type | Propane |
| RPM | 5,850 |
| Max Depth of Cut | 3" |
| Min Blade Width | .095" |
| Blade Width | .095", .110", .125", .187", .250", .375", .500" |
| Max Blade Width | Single Blade: .500" Multiple Blades: 1.5" |
| Blade Diameter | 8", 10" |
| Blade Arbor Size | 1" with Drive Pin Hole |
| Dust Collector Size | 350+ cfm |
Features
- Certified propane power – the 479cc Briggs and Stratton Vanguard V-Twin is a certified propane engine.
- It features electric start and the twin-cylinder design has reduced vibration
- Equipped with a CO monitor
- Upcut blade rotation removes debris and material from the joint and ejects it up towards the vacuum port
- Versatile blade configurations provide solutions for joint clean-out and spalled joint restoration
- New and improved polyurethane blade guard seals help contain dust
- Re-designed belt drive system for easier maintenance and longer wear life
- Front and rear pointer guides for accuracy
- Screw jack depth adjustment and quick lift blade retraction handle for consistency and safety
- Made in the U.S.A.
Manuals & Documents
Questions & Answers
The average blade life is 2,000-3,000 linear feet. However, the concrete and/or material in joints are different on each project changing the overall average.
Yes, you can stack multiple blades up to 1-1/2” on your JS131 & JS160.
3" Maximum Depth with a 10" Blade.
Width: .095, .110, .125, .187, .250, .375, .500 for single blade or multiple blades can be stacked up to 1.5" wide total.
