Product Description

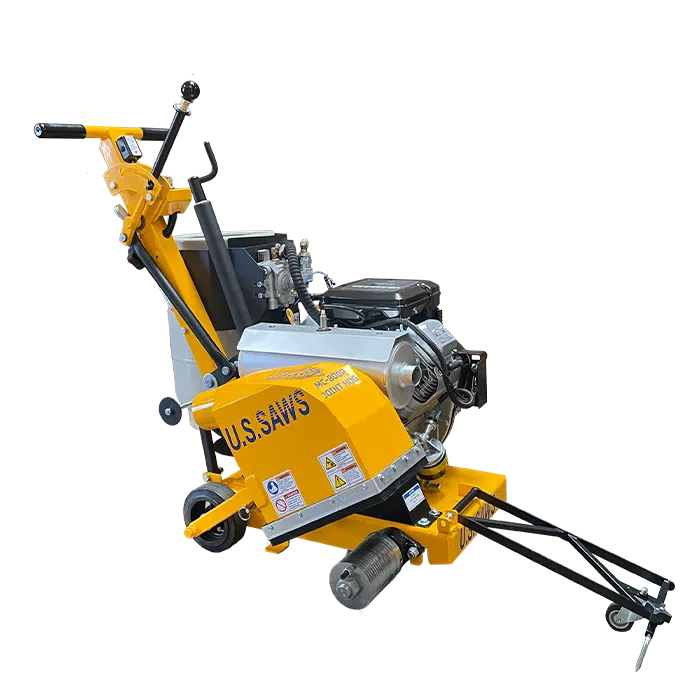

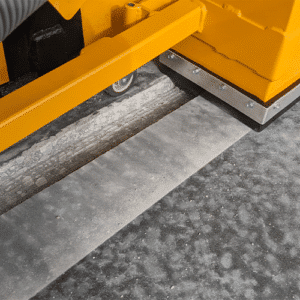

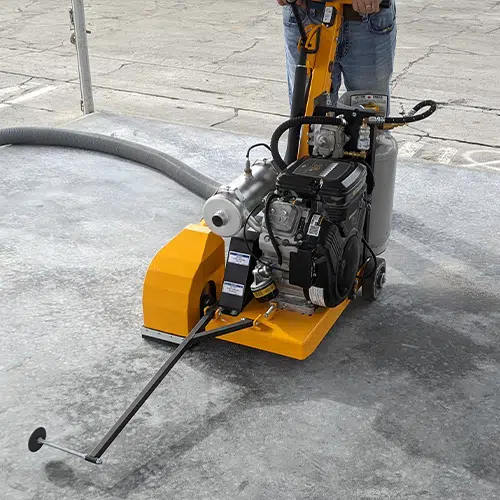

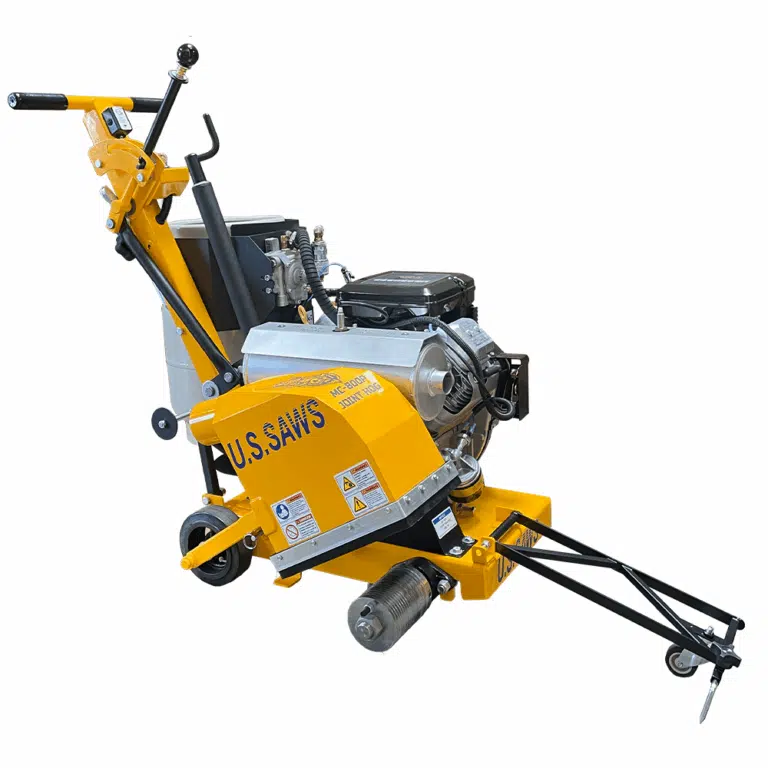

The MC-800P “Joint Hog” is a powerful milling machine and saw engineered to remove up to 4” wide and 1-3/4” deep of concrete—ideal for repairing spalled joints. It can also be used for grooving, cutting inlays, and preparing floors for permanent line striping. The machine uses closely spaced diamond blades to remove deteriorated concrete, leaving a textured, clean surface that requires no additional chipping or cutting before repair or filling.

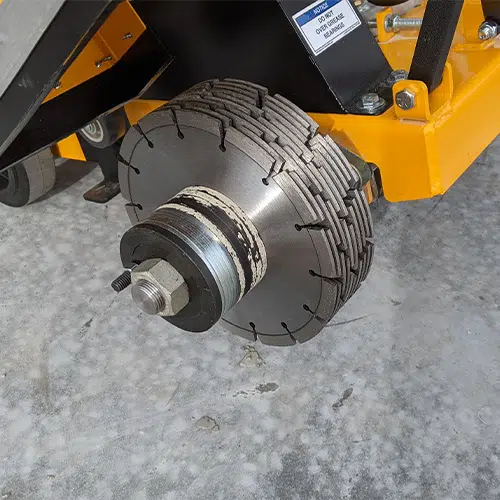

Blade configurations allow versatility: 8 blades for a 2” width and 16 blades for the full 4” width, with other spacing options available for custom applications.

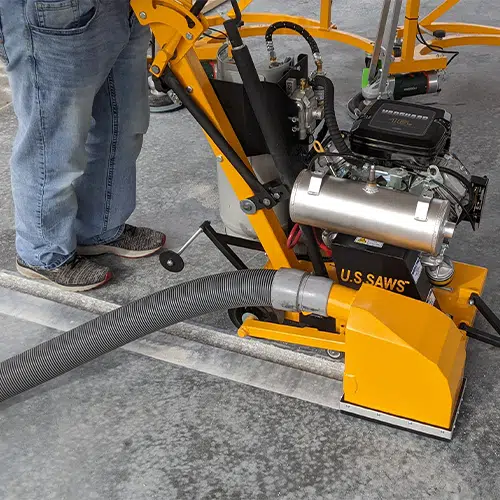

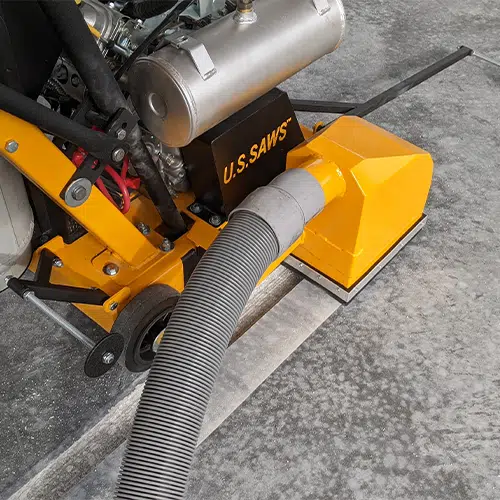

During operation, the blades cut in an up-cut direction, ejecting concrete millings upward into a specialized vacuum plenum blade guard that captures debris and dust efficiently.
Features
- Powered by a “certified” Propane 16 HP Vanguard V-Twin engine with an electric start and a C02 monitor
- Built on the U.S.SAWS JS Series frame
- Frame is fully box welded of high-quality heavy gauge steel
- Solid rear axle serves as the chassis’ lifting pivot point for a nearly indestructible platform
- Made in the U.S.A.
Technical Data
| Weight | 300 lbs |
|---|---|
| Fuel Capacity | 20 lbs |
| Power Source | 16 HP Vanguard V-Twin Certified Propane/Electric Start |
| Fuel Type | Propane |
| RPM | 5,850 |
| Max Depth of Cut | 1.75" (8" Blade) Fully Adjustable |
| Max Cutting Width | up to 4" |
| Min Clearance from Wall (Front) | 7" |
| Min Clearance from Wall (Side) | 3" |
| Cutting Speed | 2.5' per minute at 2" wide 1" deep – full mill |
| Blade Width | .125", .150" |

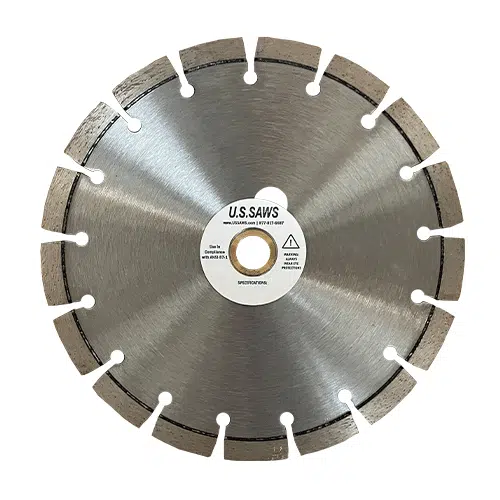

| Blade Diameter | 8" |
| Blade Arbor Size | 1" with Drive Pin Hole |
| Dust Collector Size | 400+ cfm |
