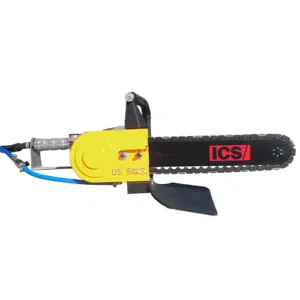

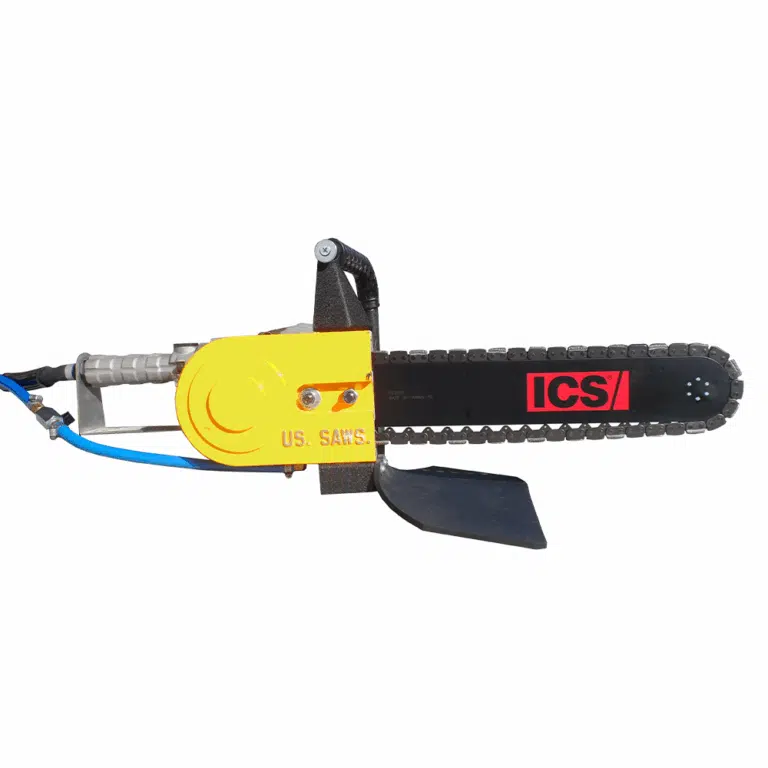

16″ Ductile Iron Cutting Air Chainsaw | Model ACH-GB16
-
+
Add to Cart
16″ Ductile Iron Cutting Air Chainsaw | Model ACH-GB16
Product Description
16″ Ductile Iron Cutting Air Chainsaw | Model ACH-GB16
Part Number: US60466

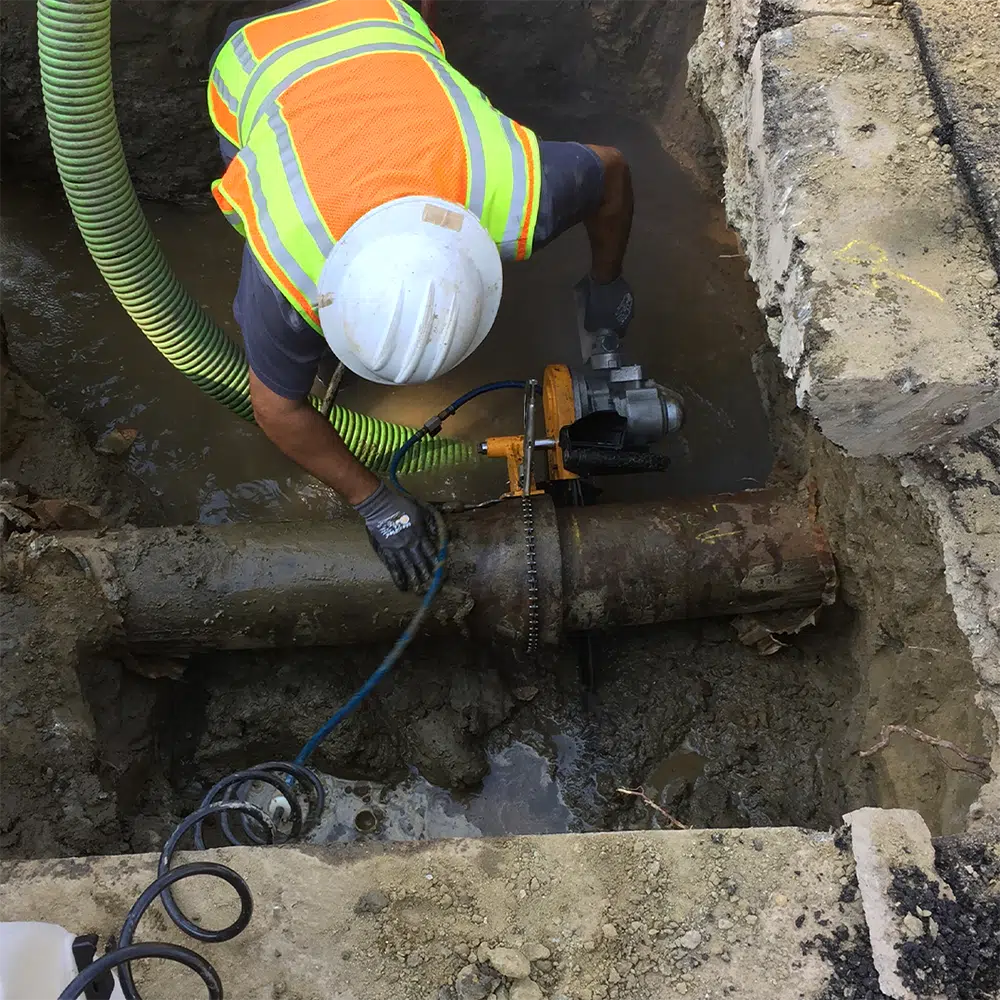

The ACH-GB16 is an air powered chainsaw designed to cut ductile iron pipe. This chainsaw is used by underground utility contractors and municipal water departments and is considered among the safest and most efficient ways to cut pipes. The special PowerGrit chain allows the Model ACH-GB Air Powered Chain Saw to safely and quickly cut ductile iron, PVC, HDPE, and other similar materials.
The 16″ chainsaw air requirements are 90 cfm @ 90 psi with a maximum cutting depth of 16″.
Includes: Model ACH-GB16 Heavy Duty Air Powered Chain Saw with Gearbox, 16″ Bar & PowerGrit Ductile Iron Chain
Some of the benefits of air power are:
- No emissions where the saw is running
- No kick back if the chain is pinched
- Can run submerged in water
- Very few moving parts for low maintenance
Features

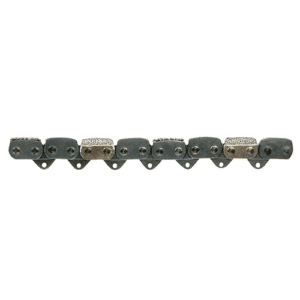

- PowerGrit chain is used for Ductile Iron, HDPE, PVC, Cast and other similar types of pipe
- Safer to use indoors and in confined spaces
- Easy to start engine
- Durable and long lasting components
- Safe to operate – no kickback
- Wet cut with no hazardous dust
Technical Data
| Weight | 27 lbs |
|---|---|
| Power Source | Gearbox |
| Air Requirements | 90 cfm @ 90 psi |
| Guide Bar | 16" |
| RPM | 3,300 |
| Max Depth of Cut | 16" |
