20″ Ductile Iron Cutting Air Chain Saw | Model ACH-GB20
-
+
Add to Cart
20″ Ductile Iron Cutting Air Chain Saw | Model ACH-GB20
Product Description

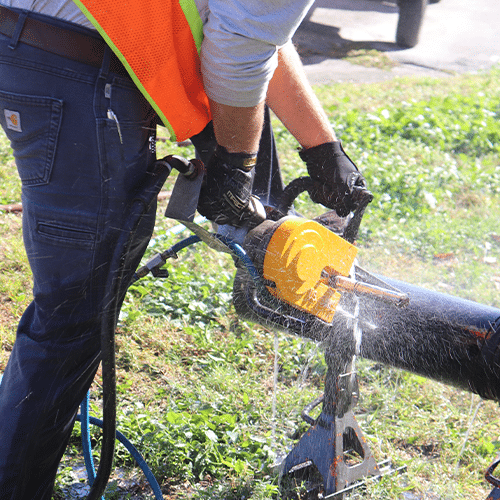

The ACH-GB20 series chains saw is designed for demanding jobs that require cutting of ductile iron and other types of pipe. It has the capabilities of a plunge cut up to 20” deep. It can be powered with commonly used power sources. The ACH-GB line of chain saws has the power you need to get the job done quickly and safely.
The 20″ chainsaw air requirements are 90 cfm @ 90 psi with a maximum cutting depth of 20″.
Includes: ACH-GB20 Air Powered Heavy Duty Chain Saw with Gearbox, 20” Bar & PowerGrit Ductile Iron Chain
Some of the benefits of air power are:
- No emissions where the saw is running
- No kick back if the chain is pinched
- Can run submerged in water
- Very few moving parts for low maintenance
Features
- PowerGrit chain is used for Ductile Iron, HDPE, PVC, Cast and other similar types of pipe
- Safer to use indoors and in confined spaces
- Easy to start engine
- Durable and long lasting components
- Safe to operate – no kickback
- Wet cut with no hazardous dust
Technical Data
| Weight | 35 lbs |
|---|---|
| Power Source | Gearbox |
| Air Requirements | 90 cfm @ 90 psi |
| Guide Bar | 20" |
| RPM | 3,300 |
| Max Depth of Cut | 20" |
