Part #MT30023GHPP
M300 Merit Hydraulic Power Unit
Available on backorder
-
+
Add to Cart

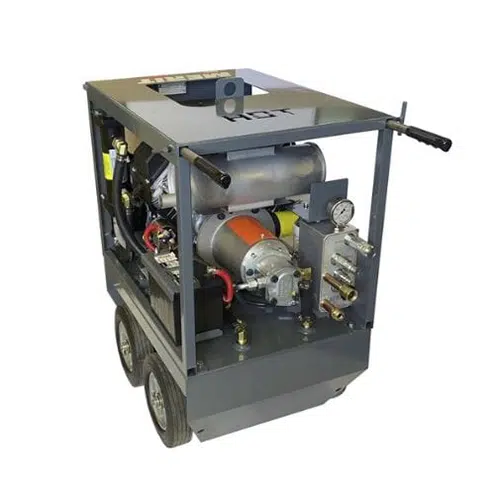

M300 Merit Hydraulic Power Unit
Product Description
M300 Merit hydraulic power pack. Built for the professional cutter that runs all day and demands a reliable, cool running hydraulic power source. 23hp Kohler engine delivers power to the hydraulic pump with a variable flow control. End users have the ability to dial in 1-14.5 gpm (pre-set to 12 from factory). Dual hydraulic oil coolers keep oil temps under control under the most demanding environments. Compact design fits thru 30″ wide doorways and maneuvers around jobsites easily.
Technical Data
| Weight | 450 lbs |
|---|---|
| Dimensions | 29 × 21 × 36 in |
| Oil Flow | 1 to 14.5 gpm variable flow control valve |
| Max Pressure | 2,000 psi |
| Oil Reservoir | 8 gal (30 L) |
| Engine Type | 23hp Kohler, Gas twin cylinder OHV, air-cooled, electric start |
| Fuel Capacity | 4 gal (15 L) |
Features
- Compact design delivers almost 15 gpm with the footprint of most 10 gpm units
- Low mounted oil and fuel tanks keep center of gravity low and aid in maneuverability
- Hydraulic and water fittings mounted inside frame rails for protection
- Dual hydraulic oil coolers keep temps down under the most demanding work environments
- Self draining tube-in-shell cooler safeguards against damage in cold climates
- Variable flow valve allows users to adjust flow output from 1-14.5 gpm
- Manifold mounted pressure gauge allows operator to monitor tool load
- Lifting point allows for easy loading and transport
- Spin on hydraulic oil filter makes oil changes convenient
