Product Description

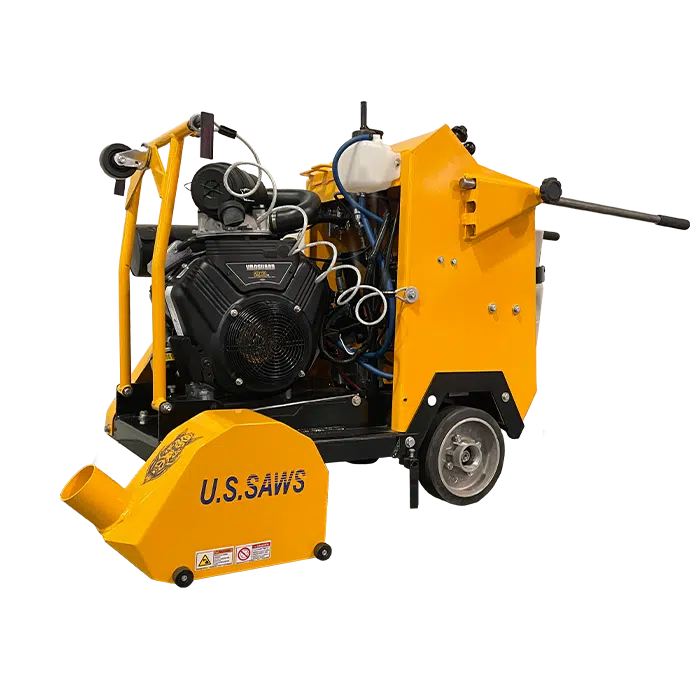

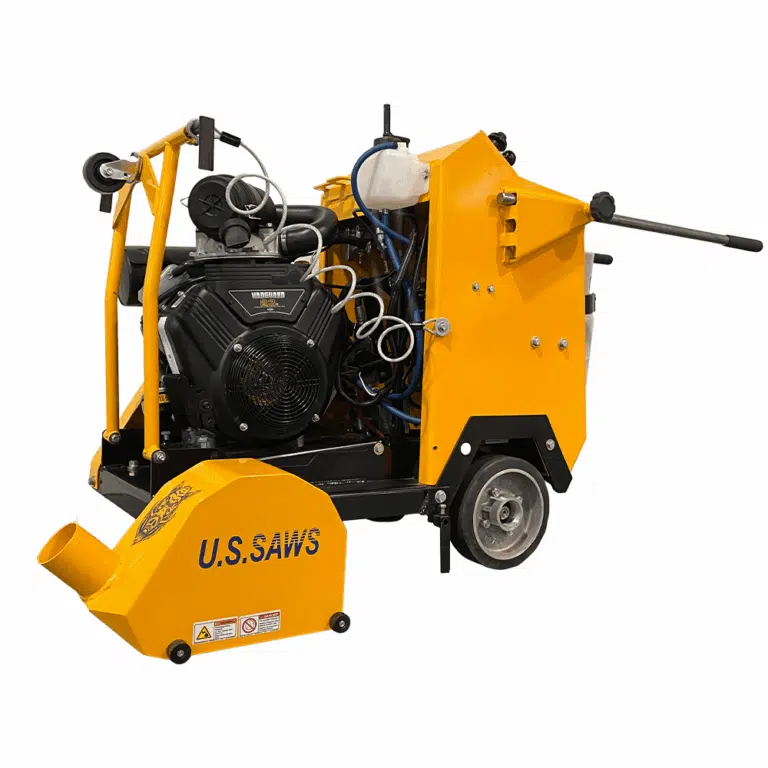

The MC-1000 is a Certified Propane Powered, self-propelled Joint Clean-out Saw/Mill designed to clean out existing control joints for new joint fill applications or to remove failing or deteriorated joint fill material. Ideal for large joint clean-out projects where a certified propane power source is preferred over gas or electric, this machine efficiently removes polyurea, epoxy, and polyurethane joint fill materials.
For maximum productivity, a 16-blade configuration provides a full 4” cutting width, with other blade setups available to meet specific job requirements. Power comes from a 23 HP Briggs & Stratton Vanguard V-Twin certified propane engine featuring electric start, high torque, and a twin-cylinder design that reduces vibration for smooth, reliable operation.
Technical Data
| Weight | 600 lbs |
|---|---|
| Fuel Capacity | 20 lbs |
| Power Source | 16 HP Vanguard V-Twin Certified Propane/Electric Start |
| Fuel Type | Propane |
| RPM | 5,850 |
| Max Depth of Cut | 1.75" (8" Blade) Fully Adjustable |
| Max Cutting Width | up to 4" |
| Blade Width | .125", .150" |
| Blade Diameter | 8", 10" |
| Blade Arbor Size | 1" with Drive Pin Hole |
| Dust Collector Size | 400+ cfm |
Features
- Can hold up to 16 blades for a cutting width of 4”; 3″ Depth Max with 10″ blades.
- Equipped with a CO monitor
- 23 HP Vanguard Propane
- Hydrostatic drive – Self Propelled
- Up cut blade rotation removes debris and material from the joint and ejects it up towards the vacuum port
- Versatile blade configurations provide solutions for joint clean-out and spalled joint restoration
- Front and rear pointer guides for accuracy
