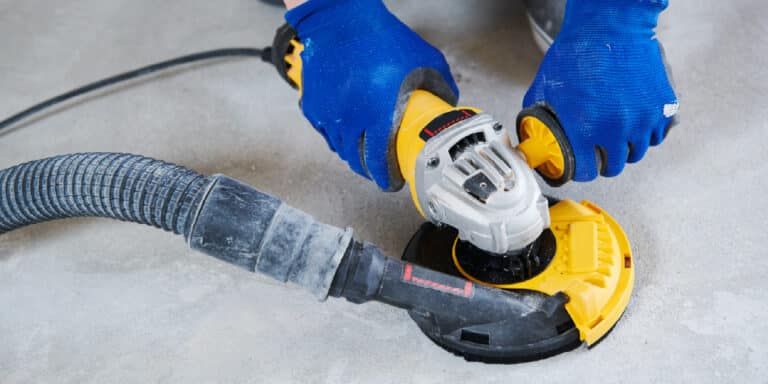

From Basketball to Benchmark: The Engineering Legacy Behind the U.S. Saws Dust Shroud

Every dust shroud on a professional job site has an origin story. Most are forgettable: a product line someone spun up to fill a catalog gap. The U.S. Saws dust shroud is different. Its origin is a garage, a cut-up basketball, a 15-year-old test pilot, and a retired aerospace engineer from next door. Thirty years later, that same engineering philosophy holds: solve the physics, use the right materials, don’t cut corners.

This is that story. It’s also a technical breakdown of why that history matters to your bottom line.

In this blog, we explore how the U.S. Saws dust shroud went from a garage prototype to the industry benchmark, and what that engineering legacy means for contractors on the job today.

The Problem Nobody Was Solving

Before dust shrouds existed, grinding concrete meant working in a cloud. Silica exposure wasn’t a regulatory issue; it was an accepted hazard. Nobody had built a practical solution for capturing dust at the source on an angle grinder, because nobody had figured out the core engineering challenge: how do you maintain a moving between a tool and an uneven concrete floor while simultaneously pulling high volumes of dust-laden air through a vacuum system?

That question is what drove the first prototype.

The First Dust Shroud: The Harlem Globetrotters Prototype

The first U.S. Saws dust shroud wasn’t machined from billet aluminum or injection-molded in a factory. It was a

Harlem Globetrotters basketball, cut in half.

The founder riveted a metal ring to the cut edge, attached a plumbing fitting to the side as a vacuum port, and bolted the assembly to a grinder. His son, 15 years old at the time, became the first person to ever test a dustless concrete grinding system.

It didn’t work perfectly. Under vacuum pressure, the rubber collapsed inward onto the wheel. But that failure taught two lessons that still define professional-grade shroud design today.

• Lesson 1: CFM beats water lift. The instinct when dealing with dust is to maximize suction. That’s wrong. High water lift (suction pressure) is what collapses a flexible shroud against the floor and stalls the system. What you actually need is high CFM (volume of air movement), paired with controlled, lower lift. Move more air, don’t just pull harder. It’s a distinction most DIY-grade vacuums and shrouds ignore entirely, and it’s why they fail under real job-site conditions.
• Lesson 2: Relief is not a flaw. It’s a design feature. The fix for the collapsing prototype wasn’t more rigid material. It was holes. By poking relief vents into the basketball, the team created a controlled intake that balanced internal pressure. The shroud could breathe, maintain its shape, and still capture dust efficiently. That principle of balanced airflow, not brute-force suction, is the foundation of every shroud we’ve built since.

Fifty Dust Shroud Prototypes

From that basketball, the team worked through 50 different designs. Each iteration tested materials, geometries, vacuum port placement, seal designs, and floor contact behavior. The goal was always the same: a dust shroud that could move fluidly across uneven concrete, maintain a consistent seal, and survive daily abuse on a professional job site.

What they landed on was a hybrid material system that hasn’t fundamentally changed in 30 years, because the physics haven’t changed.

Proprietary polyurethane handles the floor contact. It’s flexible enough to conform to surface irregularities, durable enough to resist abrasion.

The principle is straightforward: don’t ask one material to do everything. Every cheap imitation shroud on the market makes that mistake. They pick one material, usually a thin plastic, and try to make it flexible enough to seal, rigid enough to hold shape, and durable enough to last. It never works for long under real use.

The Convertible Edge: Aerospace Engineering on the Job Site

Solving the field was only half the problem. Every contractor knows the real time consumer is the Edges: that strip of unground concrete along the base of every wall that a standard shroud can’t reach. Without a solution, crews finish the field, then go back and hand-grind the edges with a different tool, a different setup, and no dust control.

The solution came from next door.

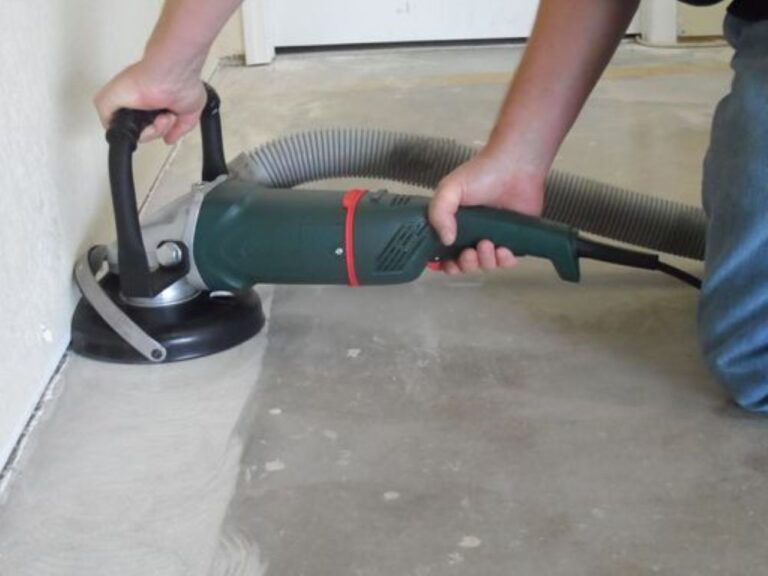

Lester was a retired titanium engineer from Hamilton Standard, the aerospace manufacturer. When he came to work in U.S. Saws’ engineering department, he brought precision materials thinking to a concrete problem. His contribution was the Convertible Edge: a section of the shroud’s leading face engineered to flip up to allow the grinding wheel to grind right up against a vertical wall surface.

The mechanism sounds simple. The engineering behind it isn’t. The challenge is making a movable component that survives constant field abuse (vibration, drops, being dragged across rough concrete) without loosening, breaking, or getting lost on a job site.

Lester’s answer was spring steel for the outer retaining ring. Spring steel has elastic memory: it flexes under load and returns to its original geometry. It doesn’t take a permanent set the way standard steel does, and it doesn’t fatigue the way plastic hinges do. Combined with the friction-fit of the polyurethane shroud body, the

Convertible Edge requires no latches, no fasteners, and no adjustment. It’s held in place by material properties, not hardware.

The functional result for contractors: the wall itself becomes part of the vacuum seal. As the shroud’s leading edge flips up against the vertical surface, the wall closes the system. Dust that would otherwise escape at the perimeter stays captured. You grind edge to edge, wall to wall, without breaking down the setup.

The Modern Evolution: AI-Modeled Airflow

Innovation at U.S. Saws hasn’t stopped with the original design. The most recent advancement addresses a problem that affects every contractor running a grinder hard: bearing failure.

Motor burnout is obvious when it happens. Bearing wear is gradual, showing up as increased vibration, reduced precision, and eventually a tool that runs rough and burns through consumables faster. Heat is the primary driver. In a standard setup, a vacuum grinder attachment draws air across the wheel but doesn’t systematically move air across the bearing housing where heat accumulates.

The solution was redesigning the aluminum adapter ring, the machined component that mounts the shroud to the grinder. Using AI-modeled fluid dynamics, spiral-shaped vent holes were engineered into the ring. As the system runs, these vents channel airflow across the bearing housing, acting as an active cooling path.

The result isn’t a reduction in motor burnout rates; that failure mode is driven by different factors. What the spiral vents demonstrably extend is bearing life. For a contractor running a grinder on a full commercial prep job, that means fewer tool failures mid-project, lower replacement costs over time, and more consistent tool performance across the life of the equipment.

It also means the adapter ring is doing two jobs simultaneously: mounting the shroud and cooling the tool.

That’s the kind of engineering efficiency that only comes from understanding the whole system, not just the component.

Why Patent Citations Matter to You

The U.S. Saws shroud design has been cited as prior art in more than 27 competitor patents. In patent law, that’s not a compliment — it’s an acknowledgment. Every time a competitor attempted to design their own shroud, the patent office pointed back to this work as the established benchmark they were attempting to improve upon.

All of them failed to improve upon it. They replicated the external form without understanding the engineering underneath it: the CFM-to-lift ratio, the relief vent placement, the material hybrid, the spring steel geometry. A shroud that looks right from the outside but gets the airflow physics wrong will perform like a consumer product on a professional job site — which is exactly what most of the market is selling.

What This Means in Practice: Choosing a Surface Grinder Dust Shroud

For a contractor selecting a vacuum shroud for grinders, the history matters because it maps directly to performance criteria:

• Seal integrity over the life of the tool. Polyurethane wears differently than cheap plastic. It maintains contact with the floor longer before replacement is needed, which means consistent dust capture across the job.
• Perimeter efficiency. The Convertible Edge isn’t a gimmick. It’s the difference between a clean one-pass system and going back with a secondary tool on every room you prep.
• Tool longevity. The spiral-vented aluminum adapter ring is a bearing protection system. On high-volume commercial work, the cumulative effect on equipment lifespan is measurable.
• Regulatory compliance. OSHA’s silica standard (29 CFR 1926.1153) requires dust controls during concrete grinding. An industrial-grade shroud paired with the right vacuum isn’t optional equipment; it’s a compliance requirement. A shroud that fails to seal properly isn’t just inefficient; it’s a liability.

The Standard, Not a Copy of It

Thirty years ago, a dust shroud prototype made from a basketball and a plumbing fitting solved a problem the industry hadn’t addressed. The engineering that followed — 50 iterations, aerospace-grade spring steel, AI-modeled cooling vents — wasn’t about chasing market trends. It was about getting the physics right and building equipment that holds up under the conditions professionals actually work in.

That’s still the standard. Everything else is a reference to it.

U.S. Saws designs and manufactures professional-grade dust shrouds, cup wheels, and surface preparation equipment. Made in America.
