Air Powered Belly Saw | For Pipes 48″ to 72″ In Diameter
Product Description

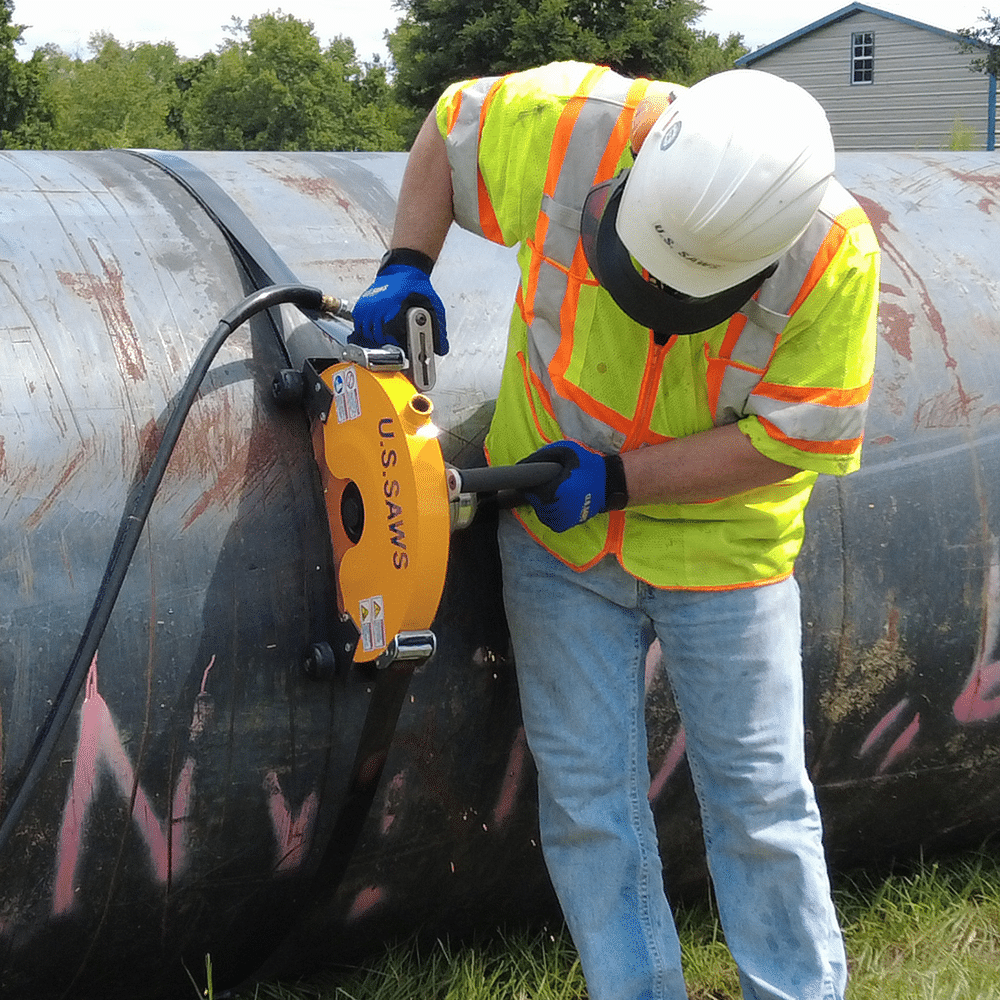

The Air-Powered Belly Saw is designed for safe underground pipe cutting, offering a superior alternative to traditional cutting methods that can be dangerous in subgrade pipe locations. The saw straps directly to the pipe for a straight, controlled, and efficient cut, making it ideal for water and sewer contractors, municipal pipe repair, and utility maintenance.
Operating at 90 CFM at 90 PSI, this belly saw delivers powerful cutting performance on PVC, HDPE, ductile iron, and cast-iron pipe. It features a 12-inch Tiger Tooth Blade engineered for fast, aggressive material removal. The protective clamshell guard keeps the operator shielded until the blade engages, while four spring-loaded guide wheels help maintain accuracy and a consistent cut path around the pipe for professional-grade results.
Package Includes: 48” to 60” Belly Saw with 12” Guard, 12” Tiger Tooth Blade, 60” Strap Assembly, 6’ Whip Hose with Oiler, (2) Wrenches, (1) Quart Ice Free Oil and Storage Bag
*SPECIAL ORDER – If time sensitive please call 866-987-7297 or e-mail us at [email protected].
Features
- Provides the safest and most accurate cut
- Designed to cut the underside of pipes safely with minimal clearance
- Ideal for pipe up to48″ to 72″ In Diameter
- These saws will cut through any type of pipe when coupled with our Tiger Tooth blade
- Models offered for cutting pipes form 8 to 60 in diameter
- Clamshell design shields blade until time of cut
- 4 spring-loaded wheels help operator to cut straight and square
- Ideal for tight spaces
Technical Data
| Weight | 20 lbs |
|---|---|
| Dimensions | 8.5 × 21 × 10.5 in |
| Power Source | Direct Drive Air Motor |
| Air Requirements | 90 cfm @ 90 psi |
| RPM | 5,250 |
| Max Pipe Diameter | 72" |
| Blade Diameter | 12" |
| Max Blade Width | .125" |
| Strap Assembly | Up to 72" |
