Valve Exerciser - Deluxe Valve Exerciser Package

US75005

Battery Powered Valve Exerciser Package

$6,543.10

Part Number: US75005

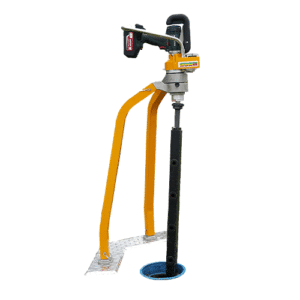

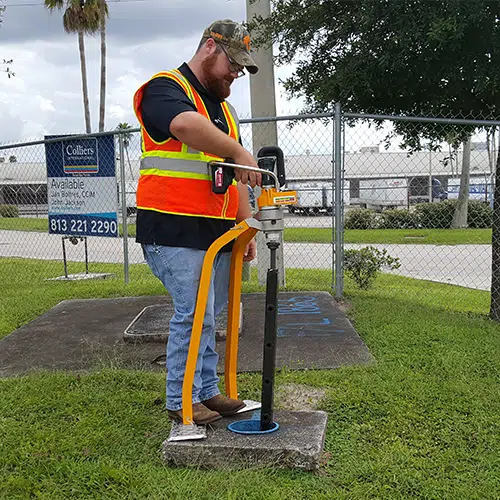

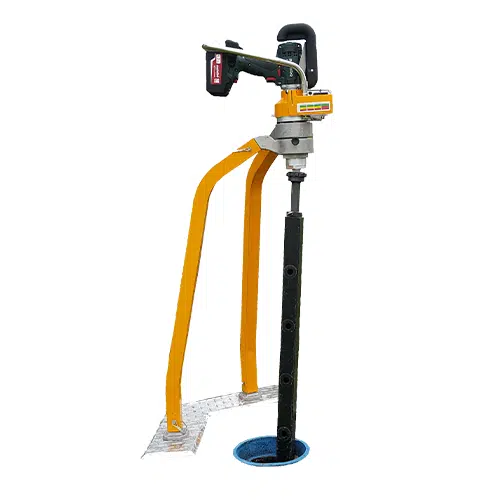

The VEX-400 is a portable, battery powered, high torque, valve turning machine designed to open, close or exercise valves safely and with less manual labor. The VEX-400 is used by municipal water departments, water and waste treatment facilities and other facilities where consistent valve turning is necessary. The VEX-400 has the ability to reduce fatigue and injuries.

In stock (can be backordered)

Description

Valve Exerciser

Part Number: US75005

The U.S.SAWS VEX-400 is a portable, battery powered, high torque, valve turning machine designed to open, close or exercise valves safely and with less manual labor. The VEX-400 is used by municipal water departments, water and waste treatment facilities and other facilities where consistent valve turning is necessary. The VEX-400 has the ability to reduce fatigue and injuries. It’s torque multiplying gearbox is a key component in the ability to achieve such high torque with only a battery powered power source. Several safety measures are in place to protect the operator in the event of a frozen valve. A turn counter ensures valves are fully opened and closed. The VEX-400 is made of high quality alloy aluminum and hardened steel internal components and utilizes a Metabo drill motor for it’s power source.

Without included extensions, the Deluxe Valve Exerciser reaches depths from 8″ to 36″
With all included extensions, the Deluxe Valve Exerciser reaches depths from 8″ to 108″
Custom sizes available upon request.

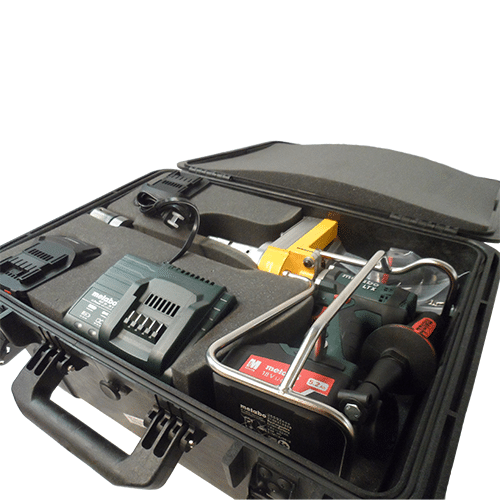

Package Includes: Power Head & Hard Storage Case, Deluxe Drive Shaft with Valve Key/Socket, Storage Bag for Legs & Extensions, (3) Shaft Extensions: (1) 1ft, (1) 2ft, (1) 3ft, (3) 18V Batteries & Charger

400 peak ft/lbs torque with torque multiplying gear box
The Valve Exerciser breaks down for easy transportation and storage in the provided case
Rotation counter allows for tracking of turns in either direction
Comes with multiple extensions that allow the user to reach varying valve depths
Comes with three batteries that allows the user to work for continuosly during a work day

Valve Exerciser Spec Sheet

Valve Exerciser Owners Manual

1. How long does the battery last?

That depends, how old and corroded the valves are will play a big part in battery life, however, one battery should be able to run a full cycle on (30) 12 inch valves if they are in good shape. Older valves will decrease that amount.

Three batteries will generally be more than enough for a full day of work.

2. Can I use my own drill?

No, the gearbox is specifically matched to the Metabo drill motor.

3. What kind of safety features does it have?

A trigger hand guard, a stable foot base, overload protection, a shear key that will break before the gearbox does.
