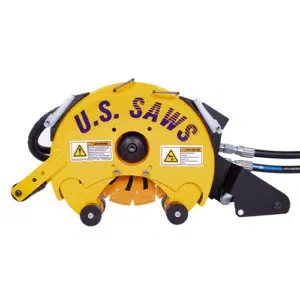

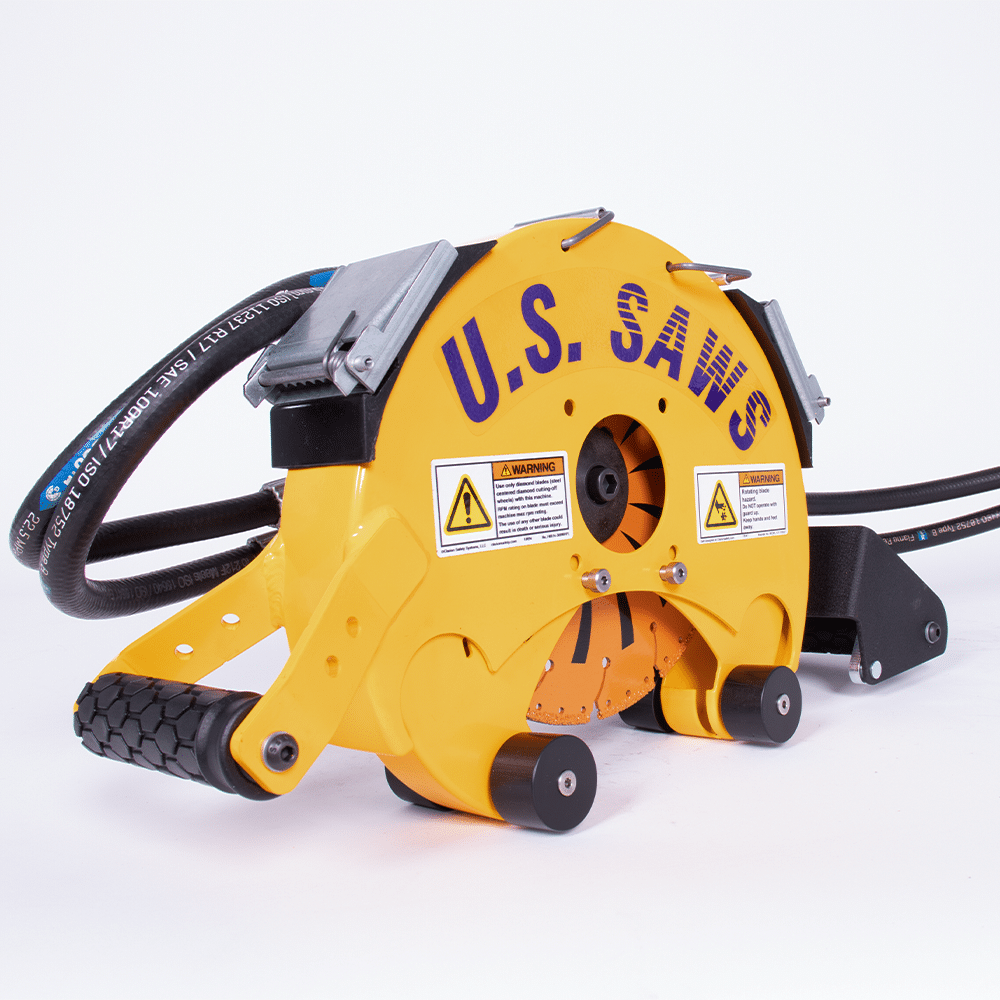

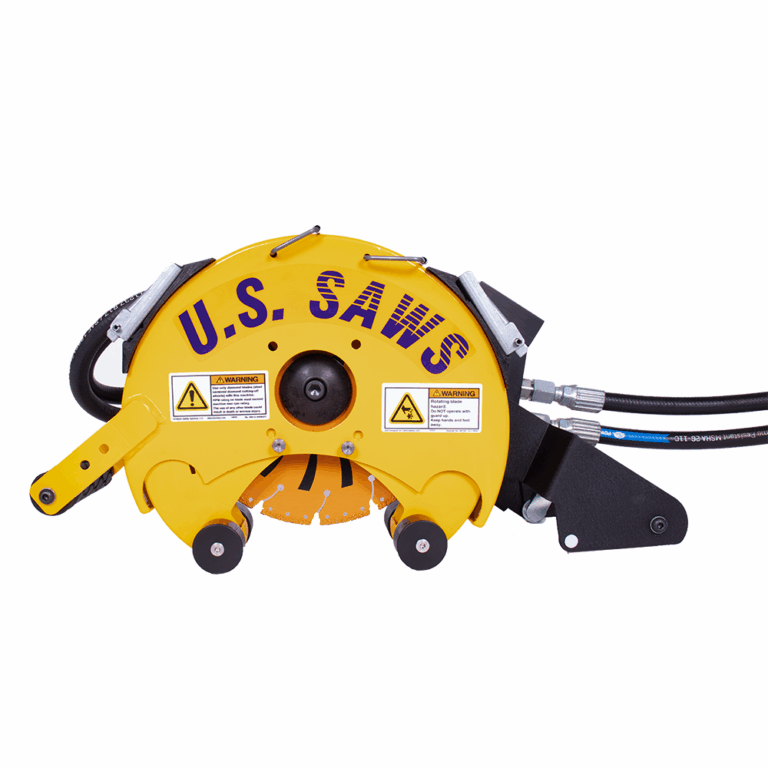

Hydraulic Belly Saw | For Pipes 8″ to 24″ In Diameter
Available on backorder
Product Description
The Hydraulic Belly Saw is designed for safe underground pipe cutting, especially in areas where traditional cutting methods are difficult and hazardous due to subgrade pipe locations. The saw straps securely to the pipe, allowing the operator to pull it around the circumference for a straight, efficient, and controlled cut. Powered by a reliable hydraulic system, this tool performs in wet utility environments without failure, making it ideal for water and sewer contractors, municipal pipe repair, and ductile iron pipe cutting.
With a maximum pipe diameter of 24 inches, a 5,000 RPM max speed, and an aggressive 8-inch Tiger Tooth Blade designed for ductile iron and PVC pipe, the Hydraulic Belly Saw delivers fast and accurate results on the toughest jobs. Follow the setup and operating procedures below to ensure optimal performance and time-saving pipe maintenance in the field.
Package Includes: Hydraulic Belly Saw, with 8” Tiger Tooth Blade, 24” Strap Assembly, (1) Wrench, and a Storage Bag
Features
- Designed to cut 8 to 24 ductile iron
- Needs only 7 of clearance to cut the underside of a pipe
- Clamshell design shields blade before and during operation
- Rollers help ensure easy, straight cuts
- When used with strap, cuts become low effort affairs
- Water kit available for steel pipe and for spark suppression
Technical Data
| Weight | 30 lbs |
|---|---|
| Dimensions | 10.5 × 24 × 12 in |
| Hydraulic Requirements | 5 gpm to 7 gmp max |
| Max PSI | 2,500 psi |
| Max Pipe Diameter | 24" |
| Blade Diameter | 8" |
| Max Blade Width | .125" |
| Strap Assembly | 8" to 24" |
