When it comes to concrete surface preparation, the quality of your finish is determined long before the first coat of epoxy or sealer hits the floor. For professional flooring contractors, choosing the right diamond cup wheel can mean the difference between a smooth, professional result and costly callbacks.
At U.S. SAWS, we’ve spent decades helping contractors select the perfect grinding tools for every application. This comprehensive guide breaks down everything you need to know about diamond cup wheels, PCD technology, and how to match your tooling to your concrete.

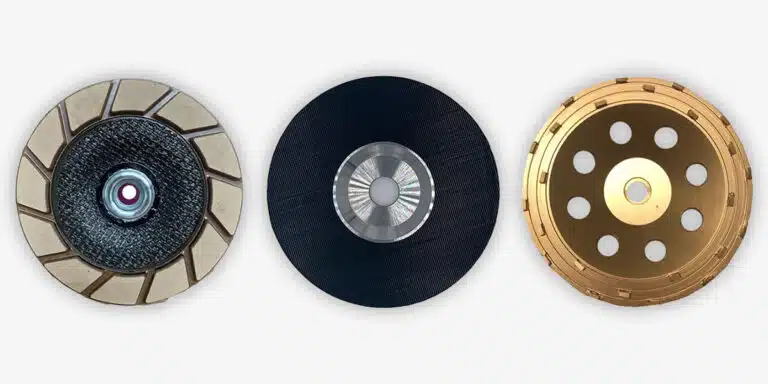

Understanding the Three Types of Grinding Tools
Not every concrete surface requires the same level of aggression. Here’s how to determine which tool is right for your project:
Silicon Carbide Discs: The Gentle Approach
Silicon carbide discs excel at light surface cleaning where preserving the concrete is critical. These non-diamond tools remove surface contaminants without gouging or creating deep scratch patterns. While they have a shorter lifespan than diamond alternatives, they’re ideal for preparing surfaces that only need minimal cleaning before coating.
Best for: Surface cleaning, light prep work, situations where minimal concrete removal is desired
Diamond Cup Wheels: The Industry Standard
Diamond cup wheels feature industrial diamonds embedded in a metal matrix, welded onto a steel disc. These workhorses of the industry are designed for creating surface profiles—the key to proper coating adhesion. Available in various grits and segment styles, diamond cup wheels remove coatings while simultaneously creating the mechanical bond needed for new floor systems.
Best for: Surface profiling, coating removal, creating adhesion profiles for new coatings
PCD Cup Wheels: Maximum Removal Power
For the toughest coating removal jobs, Polycrystalline Diamond (PCD) cup wheels are the professional’s choice. Unlike traditional diamond segments, PCD wheels feature large, solid diamond segments shaped specifically for aggressive removal. These tools don’t grind—they fracture and shear away even the most stubborn materials.
Best for: Thick epoxy removal, waterproofing membranes, heavy adhesives, multiple coating layers
PCD Segment Shapes: Matching Aggression to Application
PCD cup wheels come in three primary segment shapes, each engineered for specific removal challenges:
Quarter Round Segments: Controlled Aggression
Quarter round segments concentrate pressure into a small contact point, making them highly effective for sticky coatings like carpet glue or thick paint layers. The rounded profile and angled mounting create a scraping action that removes material without excessive gouging.
Applications: Multi-layer paint systems, sticky adhesives, thick carpet glue
Flat/Square Segments: Balanced Performance
Flat PCD segments distribute pressure more evenly than quarter rounds, making them excellent for removing multiple coats of paint while minimizing concrete damage. This balanced approach saves time on subsequent polishing or coating steps.
Applications: Multiple paint layers, coating removal before thin films, preparation for polished concrete
Triangular Segments: The Dragon’s Tooth
Our most aggressive PCD option, the Dragon’s Tooth, features sharp triangular segments that concentrate all grinder weight onto pointed tips. With 12 of these precision-engineered points on a single wheel, the Dragon’s Tooth literally fractures the bond of industrial-grade epoxies rather than grinding them away.
Applications: Industrial epoxies, thick elastomeric coatings, waterproofing membranes, situations requiring maximum removal speed
The Matrix: Understanding the “Opposites Attract” Rule
The metal matrix holding your diamonds in place is just as important as the diamonds themselves. Understanding how matrix hardness interacts with concrete hardness is critical to tool performance and longevity.
The Golden Rule: Hard Concrete Needs Soft Bonds
This seems counterintuitive, but here’s why it works:
Hard, dense concrete produces minimal dust during grinding. Without abrasive dust to wear away the metal matrix, a hard-bonded wheel won’t expose fresh diamonds—the existing diamonds simply get dull and the wheel glazes over. A soft bond (typically high in cobalt) wears away more easily, constantly revealing sharp, new cutting edges.
Soft or green concrete produces massive amounts of abrasive dust. This dust acts like sandpaper on your segments. If you use a soft-bonded wheel here, the dust will erode the matrix so quickly that diamonds fall out before they can do any work. You need a hard bond to resist this abrasion and maximize tool life.
Field Testing Concrete Hardness
While a Mohs Hardness Test kit is the professional standard for determining concrete hardness, experienced contractors also use these field indicators:
- Screwdriver test: Difficulty gouging the surface indicates hardness
- Water absorption: Instant absorption suggests soft/porous concrete; beading indicates hard, dense concrete
- Visual cues: Power-troweled industrial floors are typically very hard; residential pours (especially in wet conditions) tend to be softer
Segment Styles: Why Turbo Wheels Are the Modern Standard
While segment style matters, one design has become the clear favorite among professional flooring contractors:
Turbo (Spiral) Cup Wheels: The Professional’s Choice
The turbo cup wheel has replaced traditional segmented designs as the go-to tool for modern flooring specialists. Here’s why:
- Continuous Contact: The spiral segment design maintains constant contact with the concrete surface, eliminating the “thump-thump” vibration of traditional block segments. This reduces operator fatigue and improves finish quality.
- Superior Surface Finish: Turbo wheels leave a much cleaner scratch pattern than traditional designs—critical for thin-film coatings or polished concrete finishes that modern clients demand.
- Thermal Management: The “fan” design isn’t just aesthetic—it actively pulls air through the tool, keeping diamonds cool and cutting efficiently instead of glazing.
Traditional Segmented Wheels: Still Used for Rough Work
Single and double-row segmented wheels represent older technology but still find use in heavy civil applications. General contractors and highway crews often use these for rough grinding of Jersey barriers and similar structures where finish quality isn’t a concern.
Arrow Segments: The Tile Contractor’s Tool
Arrow segments act like a plow, concentrating initial impact to get under materials like thin-set mortar. The pointed front shears material off rather than grinding it to powder, making this design ideal for tile removal and mortar cleanup.
Common Cup Wheel Sizes and Applications
7-Inch: The Industry Workhorse
The 7-inch diameter wheel is the most popular size for professional flooring work. Originally designed to match RPM limitations on angle grinders, this size has become the standard for dust shrouds and accessory compatibility. Most professional dust extraction systems are built around 7-inch wheels.
4.5-Inch and 5-Inch
Compact Power Often called “5-inch” even when they measure 4.5 inches, these smaller wheels offer greater maneuverability in tight spaces while still providing professional results. Like 7-inch wheels, they’re widely supported by dust shroud manufacturers.
Specialty Sizes
- 2-inch wheels: Precision work in extremely tight spaces, such as single-tile grout removal
- 4-inch wheels: A middle ground less popular than 4.5/5-inch options
- 8.5-inch and 10-inch wheels: Highly specialized applications, rarely used in standard flooring work
Critical Safety: Respecting RPM Ratings
This is the most important safety rule in concrete grinding: Never put a 7-inch wheel on an 11,000 RPM grinder.
Standard 7-inch cup wheels are rated for lower RPM ranges (typically 6,000-8,500 RPM). When you mount a 7-inch wheel on a high-speed 4.5-inch or 5-inch grinder, the centrifugal forces can exceed the wheel’s structural integrity, leading to catastrophic failure:
- Segment Ejection: A single segment flying off at 11,000+ RPM becomes a lethal projectile capable of penetrating safety equipment and causing serious injury or death.
- Core Disintegration: The steel disc itself can shatter, sending metal shrapnel in all directions.
Always verify that your wheel’s RPM rating matches or exceeds your grinder’s maximum RPM. This isn’t about efficiency—it’s about life and death on the job site.
Choosing the Right Wheel: A Quick Reference Guide
- For light surface cleaning: Silicon carbide discs
- For surface profiling and general grinding: Turbo diamond cup wheels (7-inch or 4.5-inch)
- For heavy paint or coating removal: Flat PCD segments For thick epoxies or waterproofing membranes: Dragon’s Tooth triangular PCD segments
- For tile thin-set removal: Arrow segment wheels **Concrete hardness unknown?** Start with a medium-bond turbo wheel and adjust based on performance
The U.S. SAWS Advantage
Selecting the right diamond tooling requires understanding not just the tools themselves, but how they interact with your specific concrete and coating conditions. At U.S. SAWS, we combine decades of manufacturing and distribution experience with real-world field knowledge to help you choose the perfect tool for every job.
Whether you need the precision of a 2-inch specialty wheel for grout repair or the sheer removal power of a 7-inch Dragon’s Tooth for industrial epoxy stripping, we have the expertise and inventory to support your success.
For professional-grade diamond cup wheels, PCD tooling, and expert guidance on surface preparation, trust the team that’s been equipping contractors for over 30 years. Visit ussaws.com or contact our technical specialists today at 1-877-817-6687.
Next in this series: Dust Extraction and CFM Requirements for Diamond Grinding
Browse more concrete surface preparation articles from U.S. SAWS
Frequently Asked Questions
Q: Can I use the same cup wheel for all concrete types?
A: No. Hard concrete requires soft-bonded wheels, while soft concrete needs hard-bonded wheels. Using the wrong bond wastes money and reduces performance.
Q: How long should a diamond cup wheel last?
A: Lifespan varies dramatically based on concrete hardness, coating thickness, and operator technique. Quality turbo wheels typically outlast traditional segmented designs by 30-50% in similar conditions.
Q: Why is my wheel “glazing” and not cutting?
A: Glazing occurs when diamonds become dull without fresh diamonds being exposed. This typically means you’re using a wheel that’s too hard for your concrete. Switch to a softer bond.
Q: Can I remove epoxy with a regular diamond cup wheel?
A: You can, but PCD wheels are far more efficient. Diamond cup wheels grind, while PCD segments shear away coatings, working 3-5 times faster on thick epoxies.
Q: What’s the difference between wet and dry grinding?
A: Wet grinding reduces dust and keeps tools cooler, extending wheel life. Dry grinding is more convenient but generates more dust and heat. Most modern contractors use dry grinding with proper dust extraction systems.
