What Is Core Drilling & Why It’s Essential in Construction

Core drilling is the process of using a hollow drill to extract samples from materials like concrete or stone. This provides crucial data for analyzing the material’s properties. In this article, you’ll learn about what core drilling is, how it works, its types, and its applications in various industries.

Key Takeaways

Core drilling is a critical technique in construction that enables the extraction of samples for material testing, essential for assessing structural integrity and material properties.

The drilling process involves meticulous site preparation, proper drill anchoring, correct drill bit installation, and safe operation methods, all of which contribute to accurate sample retrieval.

Investing in high-quality core drilling equipment and choosing the right drill bit type significantly enhances the efficiency, safety, and overall success of construction projects.

Understanding Core Drilling

Core drilling involves utilizing a hollow drill to bore holes into various surfaces, which enables the collection of core samples for evaluation. This method is crucial within fields such as construction, mining, and geology because it allows experts to assess characteristics like density, composition, and strength of materials or geological formations. These insights from the extracted cores are essential for analyzing conditions before commencing construction activities.

The process of core drilling can effectively cut through diverse substances including stone, wood, and ice to obtain important samples. Whether employed in concrete core drilling to evaluate structural integrity or removing segments of rock for geological research purposes, drilling provides the meticulous accuracy necessary to ensure that construction endeavors proceed safely and dependably.

Types of Core Drilling

The practice of core drilling is primarily categorized into two distinct types: soft coring and hard coring, each designed for specific applications based on the materials they are used to penetrate and the depths required.

Soft coring proves effective when dealing with unconsolidated substances, offering a capability to drill as deep as 500 feet. Utilizing dual nested barrels allows this technique to excel in retrieving samples from pliable or less dense substrates such as soil or some forms of sediment.

On the other hand, hard coring—often referred to as diamond coring—involves incorporating drill bits that are coated with diamonds in order to bore through sturdier compositions. This robust method facilitates collection of solid rock specimens and can achieve penetration up to an impressive depth of 5,000 feet. It is predominantly employed when one needs to drill into challenging materials like concrete or densified rock formations.

The Core Drilling Process

The process of core drilling involves meticulous planning and execution, which includes a sequence of critical steps starting with the preparation of the drill site to running the core drill itself. Every phase guarantees both worker safety and the integrity of collected core samples.

Preparing the Drill Site

Before starting a core drilling operation, it is crucial to prepare the job site with attention to safety and efficiency. This preparation includes conducting an in-depth inspection of both the core drill equipment and the surrounding environment, as well as clearing any obstacles or hazards that could hinder a safe and uninterrupted drilling process.

Such careful preparations are vital not only for maintaining safety, but also for preserving the quality of the drilling procedure itself. By diligently readying the site, one can mitigate possible complications that may otherwise affect the integrity of the obtained drill cores.

Anchoring the Core Drill

Ensuring the core drill is correctly anchored preserves the structural integrity of the holes created by drilling. Employing anchoring methods like using bolts or ceiling jacks keeps the core drill steady throughout its operation, which is essential for acquiring precise samples of cores.

Attaching a suitable stand to rig-mounted drills with devices such as anchors, bolts, or vacuum seals stabilizes them during use. This precision aids in achieving exact drilling results and mitigates any potential movement that could cause mistakes or safety incidents.

Installing the Drill Bit

Correctly installing the drill bit is critical. Ensuring the bit and core drill are not hot and wearing protective gloves are key safety measures. The drill bit must be clean and free from contaminants that could affect its performance.

Proper installation involves cleaning the bit and drill spindle of dirt or contamination. The bit is then threaded onto the drill spindle and tightened securely with a bit wrench to ensure it stays in place during drilling.

Operating the Core Drill

To ensure a precise cut and maintain the quality of the core sample, it is necessary to apply consistent pressure when using a core drill. During hard coring operations, fluid or air is used by the outer barrel to clean the surface being drilled. This process aids in preserving the integrity of the extracted core.

Wet Drilling vs. Dry Drilling

Drilling a core can be accomplished through dry or wet techniques, each offering its own set of benefits and constraints. Wet drilling utilizes water to keep the drill bit cool and to reduce dust creation, whereas dry drilling is conducted without water, which makes it appropriate for situations where the use of water is impractical.

Wet Core Drilling

Wet core drilling provides cleaner holes and reduced dust generation. The water cools the drill bit, enhancing its lifespan and overall efficiency. This method is particularly useful for drilling through concrete, soft or hard brick, and reinforced concrete.

Wet core drilling also creates a safer and cleaner work environment by minimizing dust, protecting workers’ health, and reducing the need for extensive cleanup after drilling.

Dry Core Drilling

Drilling without the use of water, known as dry core drilling, is particularly beneficial in scenarios where introducing water could be dangerous, for example during electrical installations. Nevertheless, this technique results in increased dust production and places greater strain on the cutting edges because there’s no liquid to reduce friction and heat buildup—conditions that can lead to premature wear or damage of the drill bits.

Despite its inherent difficulties, employing a dry core method remains valuable for specific tasks. It demands meticulous handling to both preserve the durability of drill bits and safeguard those operating the drill.

Applications of Core Drilling in Construction

The practice of core drilling plays a crucial role in the construction industry, serving to extract samples for lab testing, especially relevant in sectors such as mining and dealing with concrete. This approach is essential for assessing the structural soundness of buildings and various infrastructures. By examining these obtained cores, engineers can ascertain both material quality and foundational strength before initiating any building work.

Core drilling facilitates accurate placement of utilities including electrical lines as well as systems related to plumbing and heating, ventilation, and air conditioning (HVAC). While wet core drilling offers efficiency through its rapid penetration capability—beneficial when working on projects involving plumbing or HVAC—the dry core method is preferred where water may pose a risk within electrical settings.

Thanks to its precision-focused nature, this form of drilling helps reduce disturbance at the site by generating significantly less noise and vibration compared with more conventional techniques used for cutting concrete. As a result, it not only conserves the integrity of adjacent materials but also limits post-operation cleanup demands thereby sustaining tidiness throughout construction processes.

Safety Practices in Core Drilling

To safeguard workers from the dangers associated with core drilling, it is essential to adhere to specific safety measures. Protective gear such as safety glasses, ear protection, and masks for dust prevention are crucial in lessening risks like auditory harm due to noise pollution and respiratory issues caused by inhaling silica particles.

Engaging in core drilling operations on tough materials can be strenuous and induce exhaustion. To manage this fatigue effectively and bolster overall safety:

1. Prioritize frequent breaks for adequate rest.

2. Employ correct manual handling methods to reduce physical stress.

3. Conduct meticulous inspections of all equipment before use, ensuring every tool functions correctly.

These recommendations are pivotal in averting injuries and fostering a secure work environment.

Maintaining a safe workspace not only revolves around personal protective measures, but also strict adherence to established procedures and security protocols. This encompasses providing continual education for employees about updated safety techniques along with proper operation of drilling machinery.

Types of Core Drilling Machines

There are multiple core drilling machines available, each tailored for particular uses. Universal core drilling machines offer flexibility, capable of executing drills at a multitude of angles to accommodate diverse projects.

Compact and easily movable, portable core drilling units come equipped with an electric motor, speed reducer, support column, and a light base. Laboratory coring devices are designed for precision cutting through hard substances such as rocks and concrete in controlled environments. Pavement core drilling machinery combines durability with portability to penetrate different kinds of materials effectively.

Choosing the appropriate machine is crucial due to the distinct advantages provided by each type. It’s important to align the choice with the specific demands of your project.

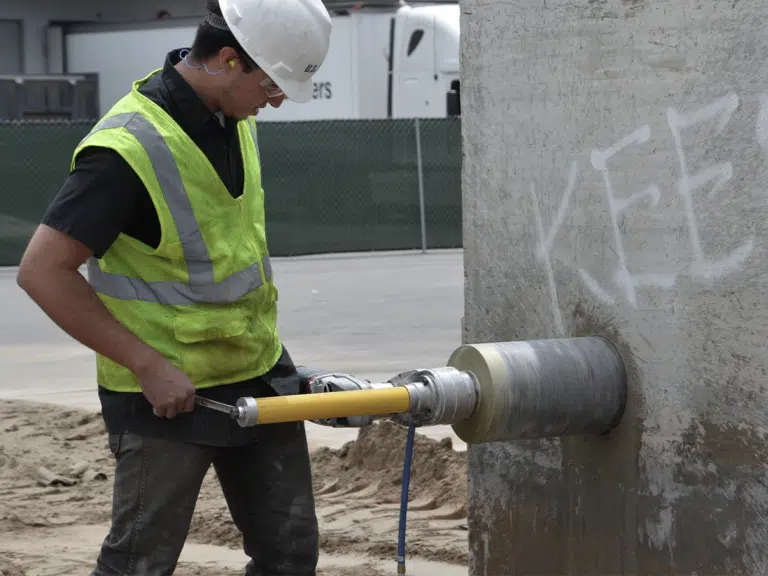

For a modular, high-precision solution, consider the U.S.SAWS Core EZ | Core Drilling Machine—designed for faster, more accurate concrete drilling in tight or elevated spaces.

Selecting the Right Drill Bit

It is essential to choose the correct core drill bit for effective drilling and to ensure that sample integrity is preserved. Diamond-tipped drill bits are often selected for concrete core drilling because they excel at slicing through hard materials due to their superior hardness compared to carbide-tipped bits, making them highly suitable for penetrating resistant materials. Specifically, diamond concrete core drills shine in these scenarios.

On the other hand, when dealing with softer substances, carbide-tipped core drill bits are typically employed. For exceedingly hard alumina varieties, material with substantial metal content, sophisticated ceramics as well as natural and precious stones. Metal-bonded diamond-core drill bits emerge as the optimal choice. Securing an appropriate drill bit is key not only for a seamless drilling process but also in capturing high-quality samples.

Advantages of Core Drilling

Core drilling is highly regarded for its significant benefits, which have made it a go-to technique in construction and other industries. Notable advantages of core drilling include:

1. Its exceptional precision that guarantees outcomes align with the exact specifications of a project.

2. The utilization of hollow drill bits designed to extract samples from materials for thorough examination.

3. The provision of critical insights into the properties and characteristics of various materials.

This method plays an indispensable role in ensuring both quality and reliability across numerous construction projects.

When implementing wet drilling, durability within drilled holes is improved due to reduced debris buildup and enhanced cooling effects on drill bits, resulting in increased longevity for these components. Specifically, diamond-embedded drill bits are crucial when tackling very hard substances. They function by grinding down surfaces instead of simply cutting through them. By doing so, this approach maintains the structural integrity around the area being worked on while also diminishing post-drilling cleanup efforts.

Inverted Drilling Techniques

Boring from beneath a concrete structure, also known as inverted drilling, is an essential technique for projects where access is restricted or the drilling must be done from underneath. Hydraulic core drills are favored in this approach due to their capacity for improved operator movement and functionality under waterlogged conditions. This practice proves especially beneficial when employed within concrete structures.

The use of these core drills amplifies the efficiency of inverted drilling by providing ease of maneuverability to operators and maintaining operational effectiveness even in aquatic environments. Consequently, they become highly suitable for projects that involve underwater operations or those necessitating boreholes initiated from below a structure during specific construction and maintenance activities.

Investing in Core Drilling Equipment

Securing top-notch core drilling machinery is essential for the effectiveness and security of construction endeavors. Cutting-edge apparatus, such as those furnished by A-Core, boast the ability to penetrate depths exceeding 60 feet, displaying a high level of technological advancement. Such premium equipment not only amplifies the efficiency of projects, but also upholds safety standards for laborers.

In essence, allocating funds toward sophisticated drilling tools significantly contributes to the triumphs in construction activities. Dependable machines elevate work output and guarantee that objectives are achieved with meticulousness and adherence to safety protocols.

For instance, you can explore core drilling equipment from US Saws—offering solutions that merge portability, precision, and safety features for a range of construction needs.

Summary

Core drilling is an essential practice within the construction sector, delivering precise and reliable outcomes for a variety of tasks. This discussion has encompassed everything from understanding the fundamental concepts and varieties of core drills to delving into intricate procedures and adherence to safety standards, highlighting how this approach plays a pivotal role in advancing construction endeavors. Enhanced performance and safety during core drilling activities are ensured by employing state-of-the-art machinery along with selecting appropriate drill bits.

In summary, it’s clear that core drilling not only bolsters the structural integrity of building initiatives but also guarantees their completion with minimal disturbance alongside optimal efficiency. Leveraging proper techniques coupled with advanced equipment significantly contributes to securing successful results in the realm of construction.
